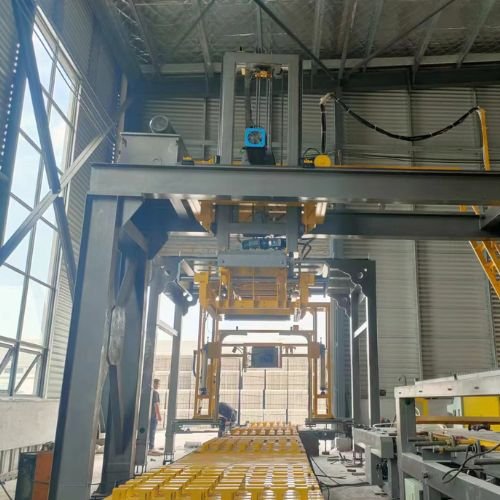

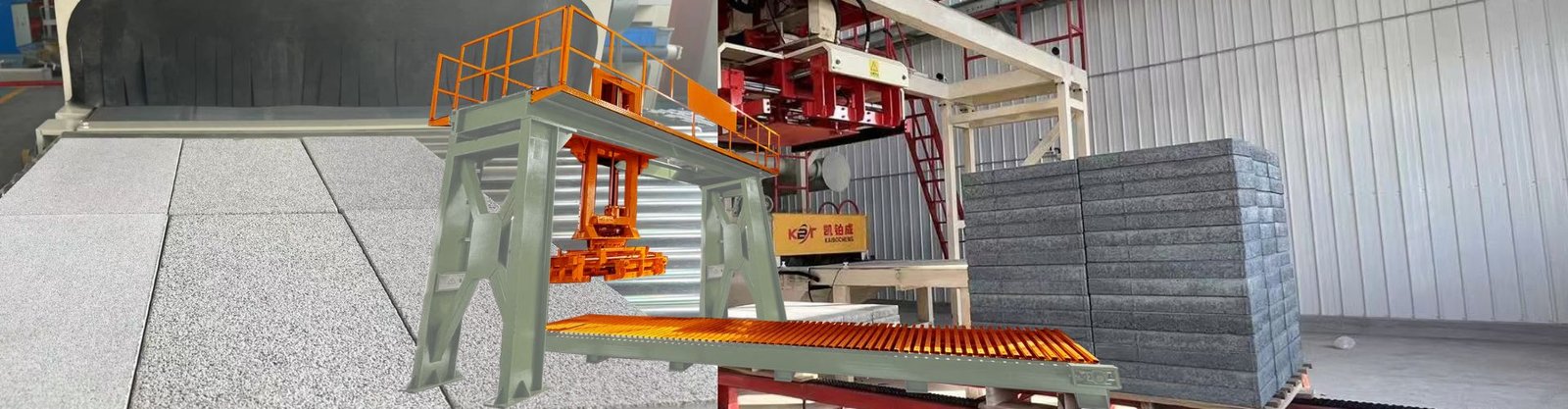

Automatic Cuber Stacker For Concrete Paver Blocks
This automatic cuber stacker is mainly for brick block machine and shot blasting machine line
- It can be equipped with servo motor
- Fast speed
- Horizontal and vertical stacking
- Suitable for various types of concrete bricks,pavers blocks,interlocks
- Low failure rate
- PLC control
What is Automatic Cuber Stacker For Concrete Paver Blocks?
Automatic cuber stacker for concrete paver blocks is suitable for semi-dry brick block pavers palletizing in block production lines, and also suitable for shot blasting curling coating machines, the cubing system can be made into online palletizing and offline palletizing, also can be made into semi-automatic palletizing or fully automatic production lines.

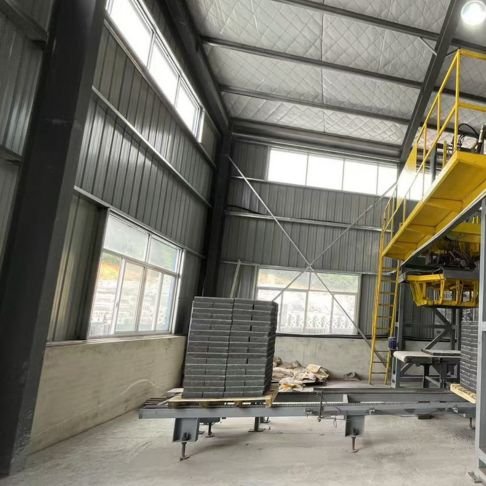

This automatic palletizing cuber system can separate and arrange paver blocks of different specifications produced by brick block machines of different models and brands, and finally form square stacks around 1 Meter for cross stacking. It can also automatically generate fork paver brick hole positions as needed. The maximum stacking height can reach 1400mm After the palletizing is completed, it is output by a heavy-duty chain or slat type conveyor, which can be manually packed or matched with an automatic strapping machine.
The automatic concrete paver block cuber machine is controlled by PLC, effectively solving the problems of manual labor and efficiency, greatly reducing the cost of brick factories.
Automatic Cuber Stacker For Concrete Paver Blocks By Functions
Automatic cuber stacker system plays a very important role in the production and surface treatment of concrete bricks pavers slabs and blocks.

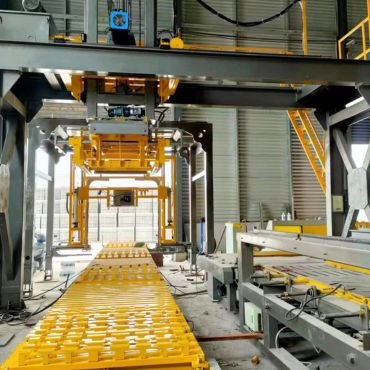

The fully automatic brick block machine line needs to be equipped with automatic cuber stacker to stack freshly formed bricks into cubic pallets, or after maintenance, the automatic cuber stacker will stack the cured dry products onto the pallets as needed, about one cubic foot per pallet.

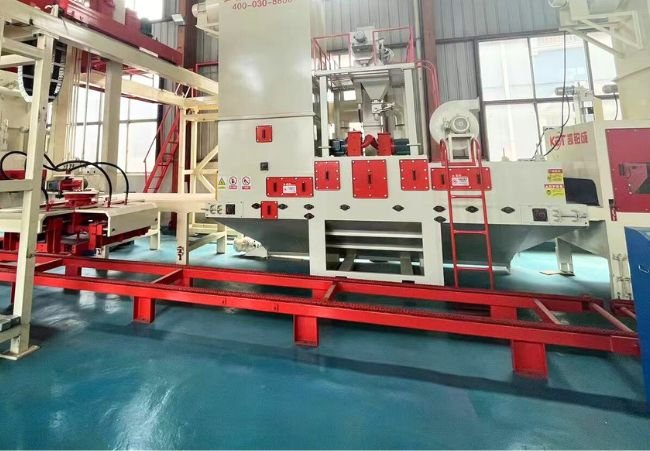

If use workers to put pavers into shot blasting machine,that is very slow and cost too much of handwork,automatic cuber stacker will loading and unlading one full layer of pavers with seconds,and one layer pavers be shot blasted at one time,very quickly and effectively.
Fully automatic concrete pavers and slabs value adding surface treatment line needs 2 sets of automatic cuber stackers for loading and unloading,automatic cuber stacker system can adjust the speed according to the whole shot blasting-curling-coating machine line,running very smoothly and stable performace.

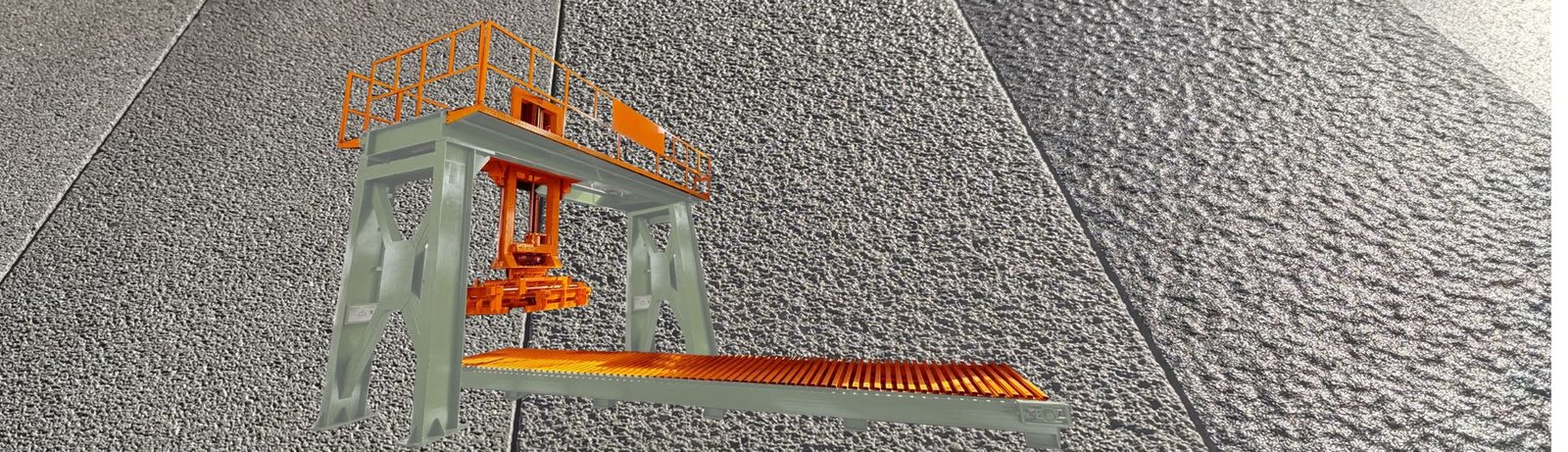

Automatic Cuber Stacker For Concrete Paver Blocks By Stacker Gripper
Automatic cuber stacker has different design accoding to customer’s specific requirements and actual usage scenarios.
-

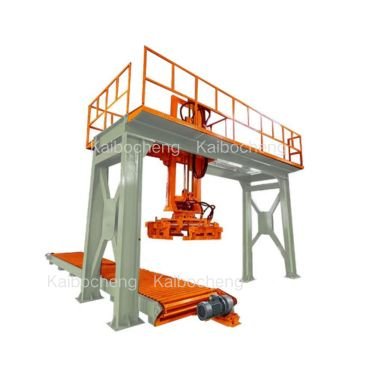

Automatic Cuber Stacker is suitable for unloading and palletizing, PLC control, can complete a cycle in 15 seconds, high speed, smooth operation, can be online or offline, and can be matched with automated production lines.
-

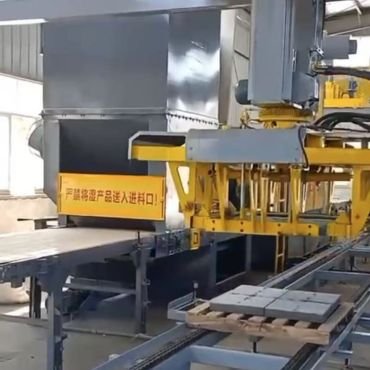

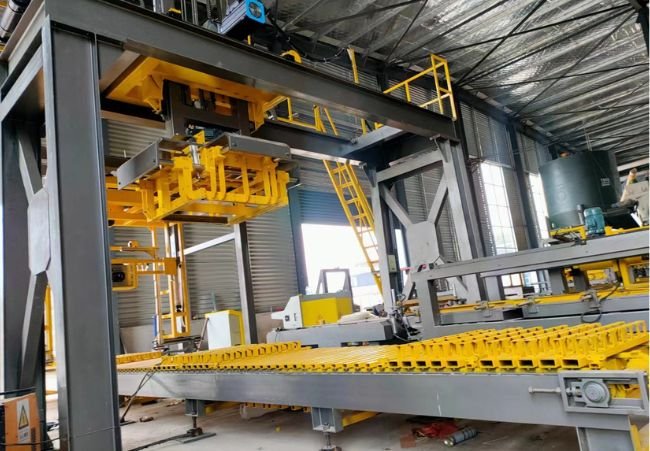

Automatic Cubing Machine System With Two Clamp GrippersThis machine belongs to fixed site palletizing. The machine is fixed inside the factory and operated under PLC control, with both brick and clamp plates working simultaneously, greatly improving work efficiency.
Automatic Cuber Stacker By Another Feature Like Size
Automatic cuber stacker machine is suitable for bricks of different sizes and pallets of different sizes.
-
Usually automatic cubing palletizer machine can loading and unloading the pallet size 900-1200mm,this is common pallet size range,cuber stacker will automaticlly sensor it,and clamp the whole layer pavers.
-
Automatic Cuber Stacker For Concrete Pavers and SlabsOur automatic cuber stacker also can clamp 800mm-1400mm,or other size,if you have special needs on pallet size,please tell us,we can design or manufacturer it for you,cos we are professional automatic cuber stacker factory in China.
Product Feature Box
Well Programmed
Smoothly Movement
Stable Performace
Fully Automatic

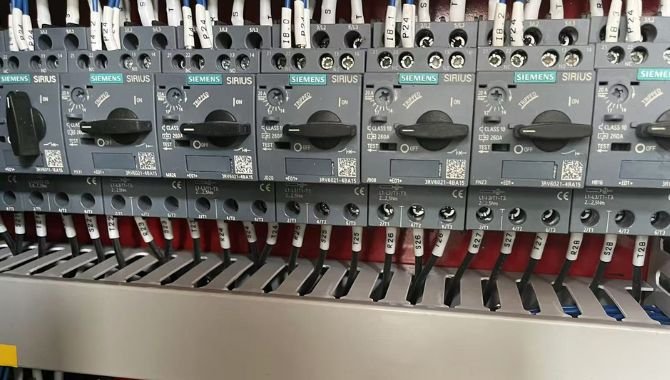

PLC Control Automatic Cuber Stacker Machine
The automatic cuber stacker or palletizer has advanced PLC English programs that can accurately control the cubing system, achieve factory production automation, improve product quality and work efficiency. It is equipped with a rainproof electrical cabinet, and both PLC and electrical are from well-known brands.

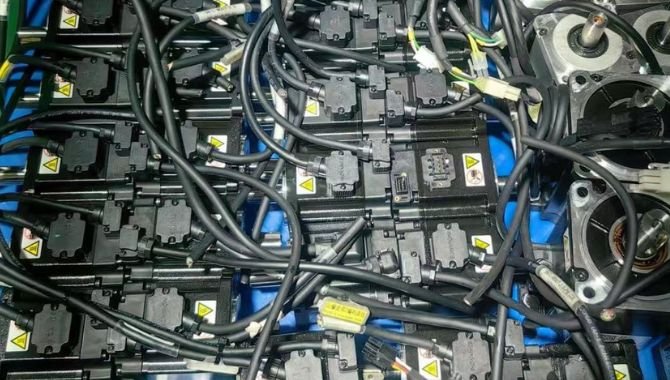

Automatic Cuber Stacker With Servo Motor
Servo motors can control speed and position accuracy very accurately, and can quickly respond in automatic control systems. Our automatic cuber machine system adopts servo motors, effectively improving work speed and accuracy, and running very smoothly.
Automatic Cuber Stacker Machine With Remote Function
Remote control can help customers solve machine production problems faster and in a timely manner. As long as there is a network, we can remotely access the customer’s machine system, check the cause of the malfunction, and ensure customer production.

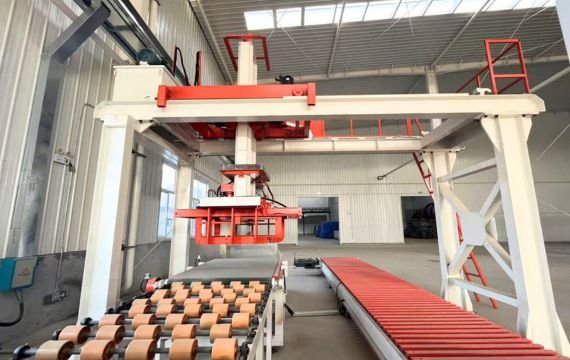

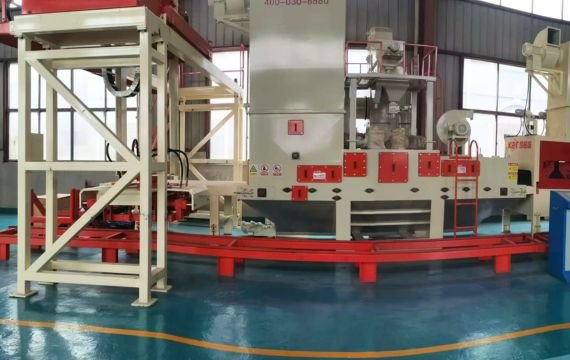

Professional Automatic Cuber Stacker Manufacturer in China
As a professional manufacturer of automatic cuber stacker machines, we can design and customize according to customer requirements. If you tell us the paver blocks’s shape, size, thickness, and purpose of the bricks,paver blocks, we can customize the production of automatic cuber stacker palletizing machines, motors, and electrical brands.
Our automatic cuber stacker machines are matched with various brands of brick blocks machines, with high cost-effectiveness and stable performance.

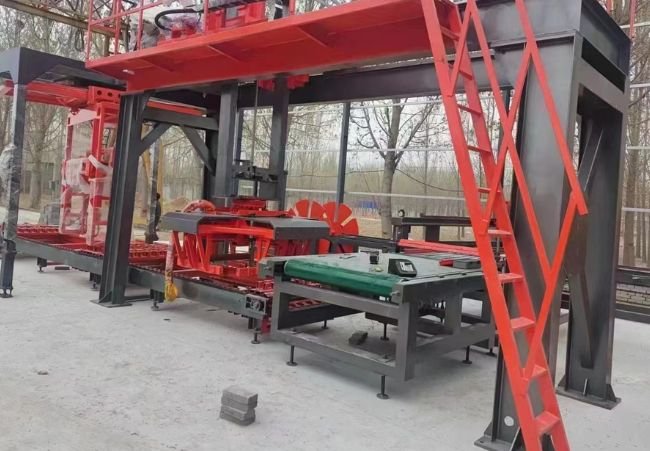

Automatic Cuber Stacker Commissioning and Installation
Before delivery machines,we will test and commissioning machines by ourselves,to save time to do installation for our customers,and find problem of the machine in time,and resolve it before delivery.
Our company has oversea installation aftersell service,we will dispatch technician to cutomer’s factory to installation and commissioning machines.

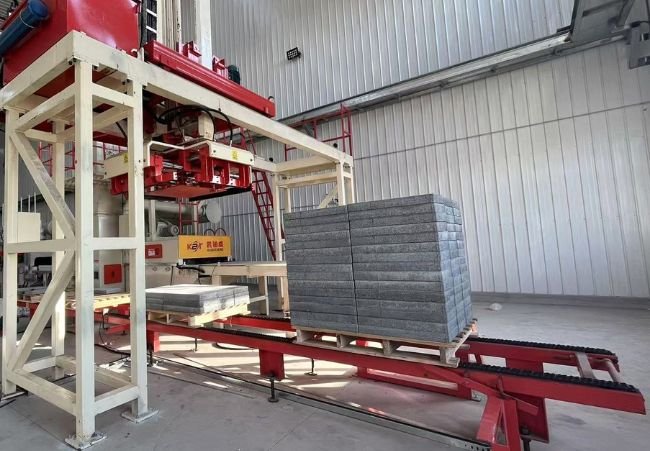

Lastes Projects
Brick block factory always need automatic cuber stacker to palletizer paver blocks,to improve production capacity.
Automatic cuber stacker is a necessary machine to loading and unloading one layer pavers,and transport to converyor of shot blasting machine line.
- Gallery
- Data Sheet
- Details
| Lifting motor | 15-17kw |
| Clamp | Hydraulic |
| Hydraulic station | 2 |
| Motor | Servo motor |
| Automatic | PLC control |
Jiangsu Kaibocheng Machinery provides the best surface treatment solutions for every user, offering the best matching products to solve various problems in surface treatment production for pavers, enabling each set of equipment to create optimal value.
Related Machine
What is the advantage of automatic cuber stacker?
1.Saving workers.
2.Improving capacity.
3.Reducing cost.
Usually 800-1400mm.or customized made.
Yes it is.
Yes, it can be customized.
1 Year
30 days
